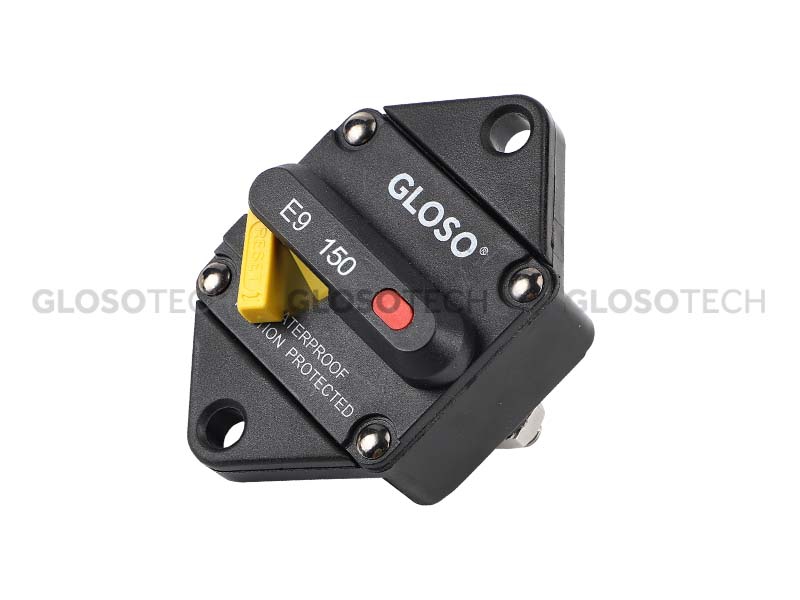

E9Q |
||
|---|---|---|
| Part Number | E9Q-150A-99-9G | |
| Description | 150A | |
| Family | Thermal Circuit Protector (Breaker) | |
| Category | E9 | |
| Series | E9Q | |
| Voltage | 48Vdc | |
| Rated Current | 150A | |
| Mounting | Panel Mount | |
| Reset Type | T3, Recessed Push to Trip (Switchable) | |
| Operating Temperature | -32ºC (-25ºF) to 82ºC (180ºF) | |
| Interrupt Capacity |
2,500A @ 14Vdc 1,500A @ 48Vdc * Consult Factory |
|
| Dimension |
Length: 1.543" Width: 1.900" Height: 2.106" Unit: inch |
|
| Weight | 80 g | |
| RoHS | Y | |
| Standard Pack | 100 | |
| Regulatory Compliance Summary |
Interrupt Capacity: SAE J1625; SAE J553, ABYC-E11; UL 1077*(test under UL1077 method) Ignition Protected: SAE J1171; Endurance: SAE J1625; SAE J553 Dielectric Strength: UL 1077*(test under UL1077 method) Dust and Waterproof: IP67 Shock, Vibration, Corrosion, Humidity: Mil-STD-202 |
|
| Termination | 1/4" Stainless Steel Studs | |
| Body | UL-rated 94V0 thermoset plastic | |
| Storage Temperature | -34ºC (-30ºF) to 149ºC (300ºF) | |
| Body Color | Black | |
| Cover Color | Black | |
Length: 1.543"
Width: 1.900"
Height: 2.106"
Unit: inch
E94
Rated Current: 150A
Voltage: 30Vdc
Reset Type: T1, Auto Reset
E97
Rated Current: 150A
Voltage: 30Vdc
Reset Type: T1, Auto Reset
E93
Rated Current: 200A
Voltage: up to 72Vdc*
Reset Type: T3, Manual Reset (Switchable)
E99L
Rated Current: 100A
Voltage: 48Vdc
Reset Type: T3, Manual Reset
E9C
Rated Current: 200A
Voltage: up to 72Vdc*
Reset Type: T3, Manual Reset (Switchable)
E9S
Rated Current: 250A
Voltage: up to 72Vdc*
Reset Type: T3, Recessed Push to Trip (Switchable)
E92
Rated Current: 200A
Voltage: up to 72Vdc*
Reset Type: T3, Manual Reset
E9R
Rated Current: 150A
Voltage: 48Vdc
Reset Type: T3, Recessed Push to Trip (Switchable)
