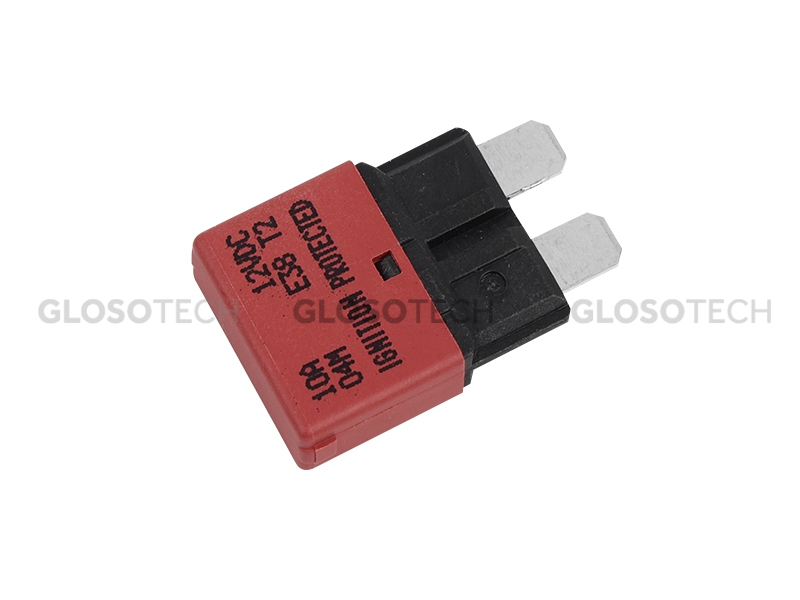

E38-10A |
||
|---|---|---|
| Part Number | E38-10-00 | |
| Description | 10A | |
| Family | Thermal Circuit Protector (Breaker) | |
| Category | E38 | |
| Series | E38 | |
| Voltage | 14Vdc | |
| Rated Current | 10A | |
| Reset Type | T2, Modified Reset | |
| Operating Temperature | -40ºC (-40ºF) to 85ºC (185ºF) | |
| Interrupt Capacity | 2,000 Amp @ 28Vdc | |
| Dimension |
Length: 19.7 Width: 6.2 Height: 29.5 Unit: mm |
|
| Weight | 5g | |
| RoHS | Y | |
| Standard Pack | 1500 | |
| Regulatory Compliance Summary | SAEJ 553; SAEJ 1171 (Ignition Protected); UL1500 | |
| Termination | 5.2mm wide blades (ATC Type) | |
| Storage Temperature | -40ºC (-40ºF) to 125ºC (260ºF) | |
Length: 19.7
Width: 6.2
Height: 29.5
Unit: mm
