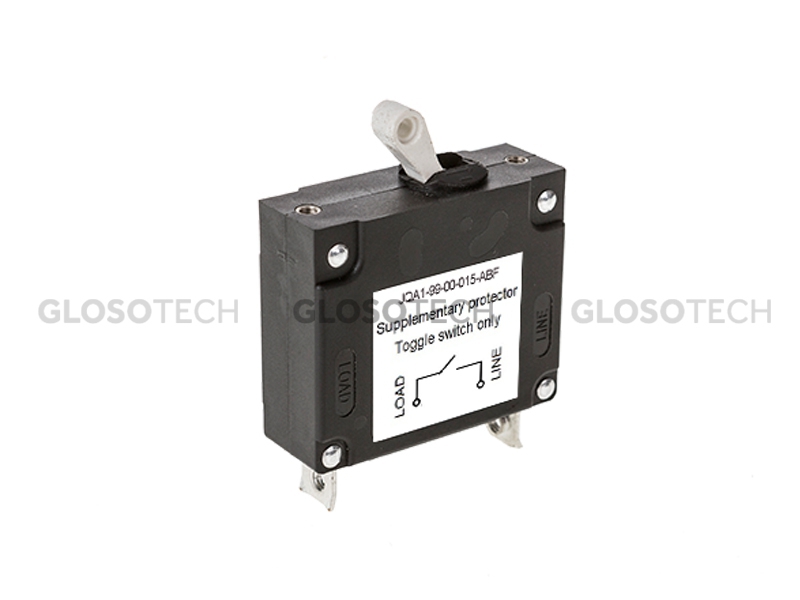

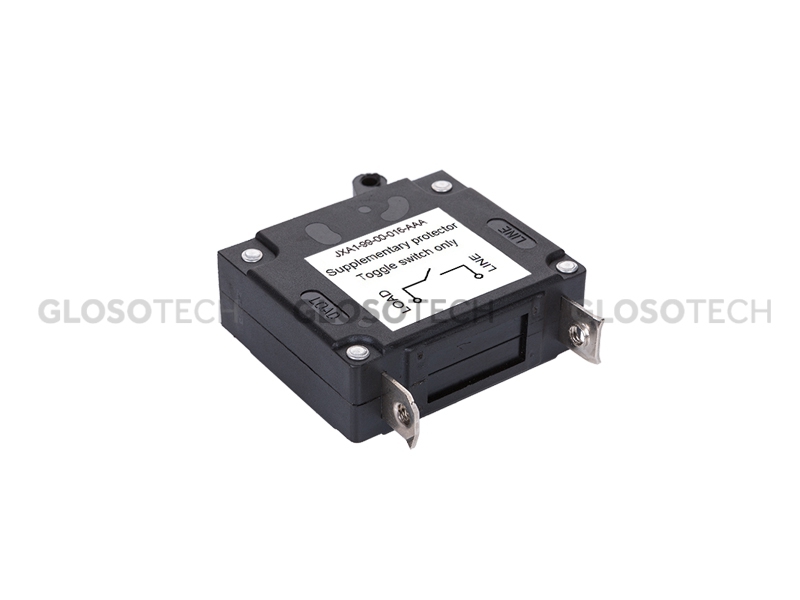

JWA1 - 99 |
||
|---|---|---|
| Part Number | JXA1-99 | |
| Description |
toggle switch 1-50Amp |
|
| Family | Toggle Switch | |
| Category | Toggle Switch | |
| Series | J | |
| Voltage | 12 Vdc | |
| Rated Current | 1-50Amp | |
| Mounting | Rear Mounted | |
| Operating Temperature | -40ºC (-40ºF) to 85ºC (185ºF) | |
| Dimension | 42 x 51 x 19 mm | |
| RoHS | Y | |
| Termination | 0.250" Quick connectoe | |
| Storage Temperature | -40C ~ +80C | |
| Numberof Poles | 1 | |
| Circuit | series | |
| Body Color | Black | |
| Actuator | Black | |
| Life Cycles | > 10 K cycles | |
